NBR/EPDM resilient seated gate valve with square cap |
 |
NBR/EPDM resilient seated gate valve with position indicator |
 |
NBR/EPDM resilient seated gate valve with lever and 1 limit switch open position. |
 |
NBR/EPDM resilient seated gate valve with lever and 1 limit switch closed position. |
 |
NBR/EPDM resilient seated gate valve with lever and 2 limit switches. |
– EN-1171
– Face to face dimensions according to EN 558-1 Serie 3. ANSI B16.10.
– Threaded ends according to ISO 6182 and ANSI/AWWA C606.
– Working conditions NBR: From -1 to +16 bar, from -10 to +80 ºC.
– Working conditions EPDM: From -1 to +16 bar, from -10 to +100 ºC.
Aplications
Foot valves are commonly used in ponds, swimming pools, wells and almost anywhere there is a pump.
The surface or opening of the foot valve is larger than that of the pipe, thereby minimizing pressure loss (energy dissipated due to friction along the pipe).
Our resilient seated gate valves serves to stop or give complete passage to a fluid, opening and closing the circuit using a rubberized wedge that gradually closes vertically until it conforms to the inside of the valve body. It is bidirectional and integral passage so it offers minimal pressure loss.
It is full bore and is installed in pipes as isolation valves. Do not use it as a control or regulation valve. To close we will make a rotating movement of the steering wheel clockwise and counterclockwise to open. As it is an internal spindle valve, its operation is carried out by means of a threaded spindle that does not go up or down, it only rotates and moves a rubberized wedge up or down along with a spindle nut that is housed in its upper part.
It is used when a small head loss and total pitch are needed.
When it is completely open, it does not usually present an obstruction to the passage of the fluid, which gives a low pressure loss.
As it is completely open, the design allows the use of devices to clean the inside of the pipes. The manually operated valve, since its operation is slow, will also avoid the effects of water hammer.
It has an interior body with a flat bottom that allows free passage of impurities through the valve. The rubberized wedge when closing traps and absorbs impurities as the valve closes, and eliminates them when the valve opens, recovering the wedge rubber the original shape. This ensures a tight airtight seal.

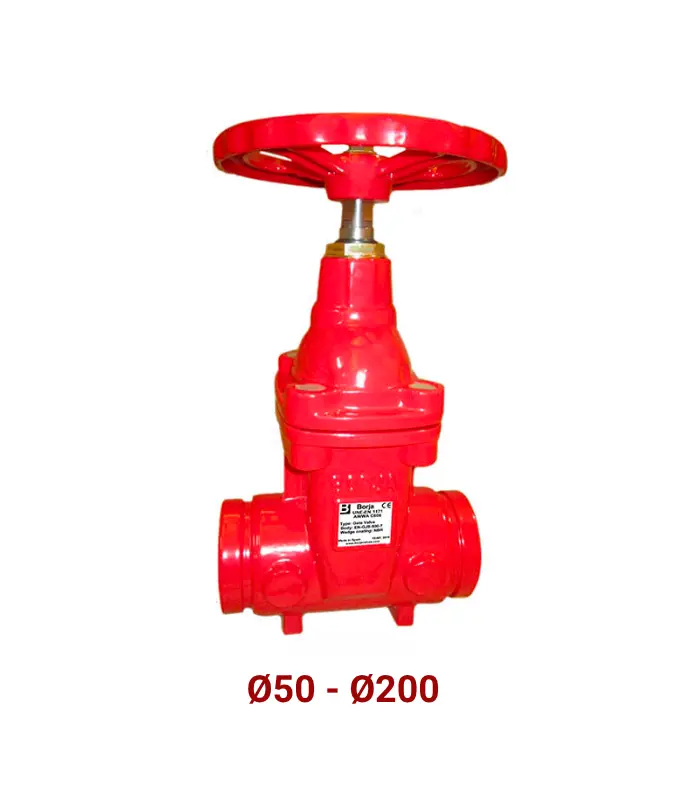

Our elastic seal gate valve with grooved joint system (Victaulic®) provides a self-centering joint that allows greater flexibility of movement and quick, secure installation, making repairs and maintenance easy. In addition, it guarantees a watertight, leak-resistant connection and an alternative to pipe joints without the need for welding or threads. Grooved ends are machined to FM/UL standards. The slotted joint system reduces noise and vibrations throughout the installation.
