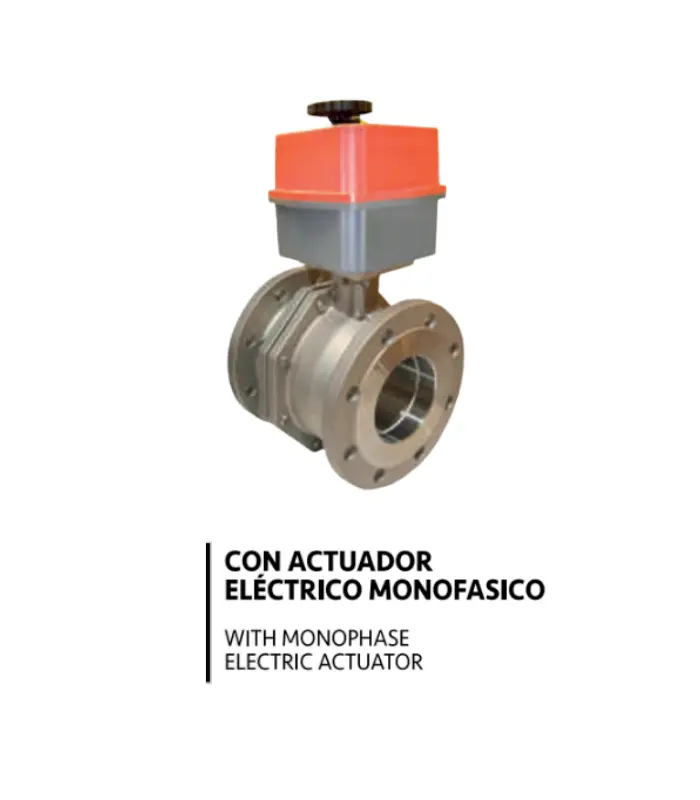

Ball Valve Stainless steel with Flanges with single-phase Electric Actuator. |
 |

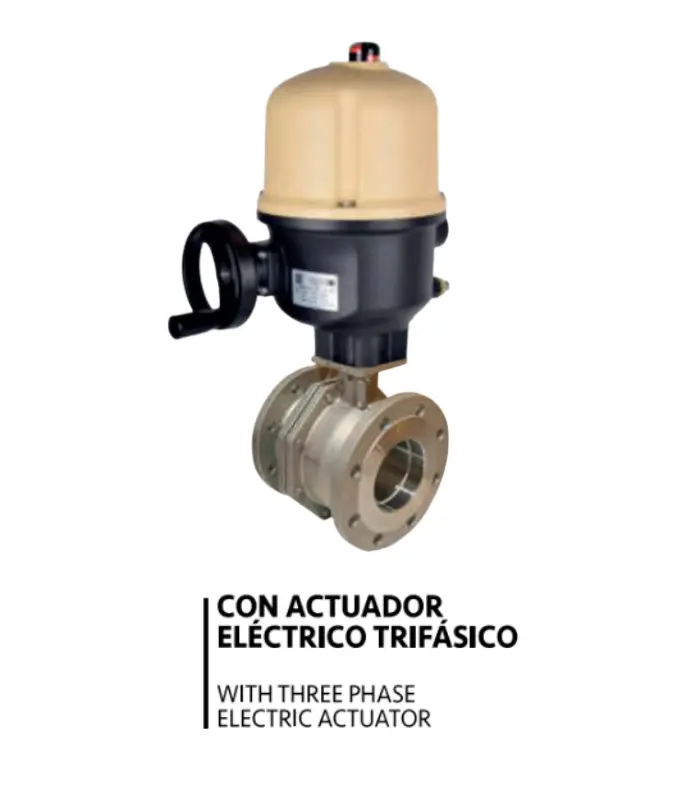

Ball Valve Stainless steel with Flanges with Three-Phase Electric Actuator. |
 |

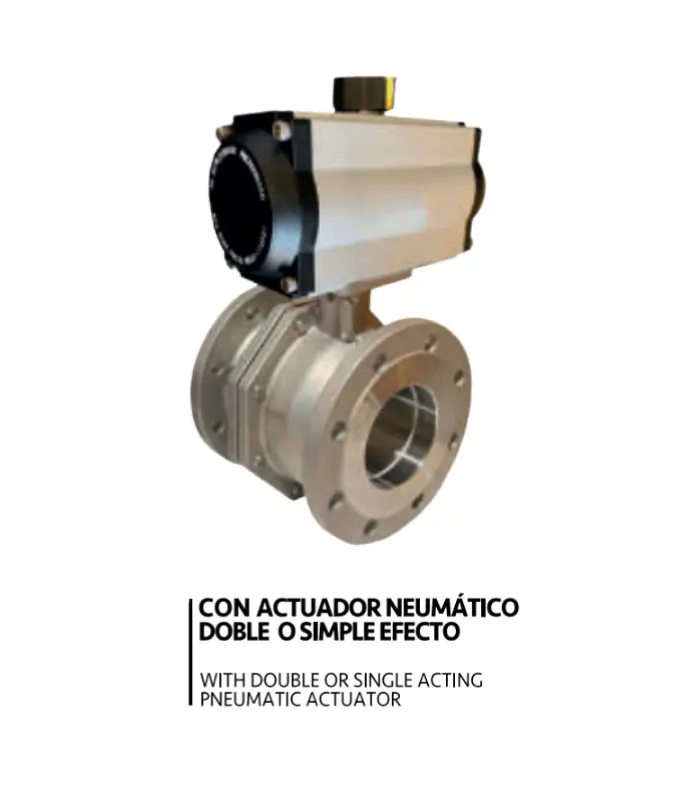

Flanged Ball Valve with Single Acting Pneumatic Actuator. |
 |
Flanged Ball Valve with Double Acting Pneumatic Actuator. |
– EN-12516 (DIN 3357).
– Face to face dimensions according to EN 558-1 Serie 27.
DIN 3202 F4 (From DN40 to DN100).
DIN 3202 F5 (From DN125 to DN200).
– Flanges dimensions and holes according to UNE-EN 1092-2 PN10/16.
CHARACTERISTICS:
It is recommended:
– For driving and cutting service, without strangulation.
– When you need quick opening.
– Working pressure: From 16 to 40 bar.
– Working temperature: From -25º to 180 ºC.
– When you need minimal resistance to movement.
Advantages:
– Low cost.
– It cleans by itself.
– Low maintenance.
– Does not require lubrication.
– Compact size.
| Aplications | Air , Corrosive fluids , Gas , Oils , Water , Water steam |
|---|---|
| Max. temperature | 180 ºC |
Aplications
Foot valves are commonly used in ponds, swimming pools, wells and almost anywhere there is a pump.
The surface or opening of the foot valve is larger than that of the pipe, thereby minimizing pressure loss (energy dissipated due to friction along the pipe).
Our flanged ball valve is used to control fluids, and the area where they pass through to cut, distribute and change the direction of flow in the network. It has the same internal diameter as the pipe (full bore), low pressure drop and high performance. It is characterized by a long service life and provides reliable tightness throughout it, even when the valve is not used for a long time.
The valve is made entirely of stainless steel and opens by turning a quarter turn (90º) of the shaft attached to a ball with a hole that floats as it rests on the two PTFE (Teflon®) seats of the valve. in such a way that it allows the passage of the fluid when the ball hole is aligned with the inlet and outlet of the two valve bodies. When the valve is closed, the orifice will be perpendicular to the inlet and outlet. The position of the actuation handle indicates the status of the valve (open or closed).
The standard construction is based on ISO 5211 and with a handle. For all steps, we offer options with motorized actuators (single-phase electric and double or single-acting pneumatic) mounted directly on the valve without adapters. The base of our valve complies with the international standard ISO 5211, which specifies the requirements for attaching part-turn actuators to industrial valves. These actuators are a reliable method of controlling the valve from a remote location. Actuators can be mounted on the valve for fail-open (the valve is always open if the actuator fails), or fail-close (the valve is always closed if the actuator fails).
It is primarily used to control the on/off flow of fluids.
It can be disassembled for cleaning, maintenance and inspection. To separate the two parts of the valve, it must be completely disassembled from the pipe.
